DDR6: The Next Evolution in High-Performance Memory Technology

Dynamic Random-Access Memory (DRAM) has been central to advances in computing performance for decades. Each successive generation has achieved significant gains in speed, density, and energy efficiency to meet the demands of data-centric applications. As DDR5 adoption matures, the industry is preparing for DDR6, the sixth generation of Double Data Rate Synchronous DRAM. Expected to enter production in late 2025 or early 2026, DDR6 promises to redefine performance benchmarks across artificial intelligence (AI), cloud infrastructure, high-performance gaming, and enterprise workloads.

This paper synthesizes available draft specifications, as well as vendor and JEDEC working group insights, to provide a comprehensive overview of DDR6 development timelines, architectural innovations, comparative performance metrics, and market adoption trends.

Since the commercial debut of DDR5 in 2021—aligning with AMD Ryzen 7000 and Intel Alder Lake architectures—memory technology has evolved to support exponential increases in bandwidth and efficiency. DDR5 achieved substantial improvements over DDR4, including dual sub-channel design and increased transfer rates. However, the rising computational demands of AI model training, real-time analytics, and immersive gaming have underscored the need for a new generation of memory.

DDR6 is being standardized by the JEDEC JC-42.3 subcommittee, with a projected release of Specification 1.0 in 2025. Initial prototypes from leading DRAM manufacturers indicate transformative capabilities in throughput, power optimization, and memory architecture.

Development Timeline and Standardization Process

The progression of DDR standards follows a consistent cadence of approximately five-year intervals, with each generation doubling the maximum data transfer rate. The timeline for DDR6 development is as follows:

2018–2020: DDR5 standardization and release
2021–2023: Broad DDR5 adoption across servers, desktops, and mobile platforms
2024: JEDEC circulates the initial DDR6 draft specification
Q2 2025: Expected ratification of DDR6 Specification 1.0
Q4 2025–Q1 2026: Anticipated formal publication of the final standard

Development Timeline and Standardization Process

2018–2020: DDR5 standardization and release
2021–2023: Broad DDR5 adoption across servers, desktops, and mobile platforms
2024: JEDEC circulates the initial DDR6 draft specification
Q2 2025: Expected ratification of DDR6 Specification 1.0
Q4 2025–Q1 2026: Anticipated formal publication of the final standard

Evolution of DDR Standards

Standard	Max JEDEC Data Rate (MT/s)	Year Introduced
DDR	400	~2000
DDR2	800	~2003
DDR3	1,866	~2007
DDR4	3,200	~2014
DDR5	6,400	~2020
DDR6	≥12,800 (Projected)	~2025–2026

This structured standardization process ensures that DDR6 will be interoperable across CPU, SoC, and DIMM suppliers, accelerating time to market once finalized.

Technical Innovations and Key Features

Memory Speed and Bandwidth

DDR6 is expected to double maximum data transfer rates relative to DDR5. Projections indicate:

Standard baseline speeds: ≥12,800 MT/s

Overclocked modules: ≥15,000–17,000 MT/s

These speeds will enable memory bandwidths exceeding 134 GB/s per DIMM, supporting increasingly data-intensive applications.

Architectural Enhancements

DDR6 introduces multiple architectural innovations designed to improve throughput and efficiency:

Four Memory Channels: DDR6 employs four 16-bit sub-channels per DIMM (vs. DDR5’s two 32-bit channels), enhancing parallelism and reducing latency.

New Pinout Configurations: Revised layouts optimized for high-frequency signaling.

Adaptive Refresh Mechanism: Dynamically scales refresh cycles based on workload and temperature.

Sideband Communication: Adds dedicated signaling for telemetry, power management, and error correction.

Command Truth Band (CTB): Improves command integrity and minimizes latency.

Expanded Memory Addressing: Supports higher density modules and large dataset processing.

Advanced CA Topologies: Includes Decision Feedback Equalization (DFE) for reliable high-speed signaling.

Power Efficiency Improvements

DDR6 is projected to achieve significant power reductions:

Lower Core Voltage: <1.1 V (vs. DDR5’s 1.1 V and DDR4’s 1.2 V).

Dynamic Voltage and Frequency Scaling (DVFS): Real-time tuning of power consumption.

Advanced Power Management: On-die regulators and adaptive refresh.

These advances will be essential for sustainable data centers, edge computing, and mobile devices.

Comprehensive Technical Comparison

Table 2. Historical and Technical Comparison of DDR Memory Standards

Parameter	DDR	DDR2	DDR3	DDR4	DDR5	DDR6 (Projected)
JEDEC Max Data Rate (MT/s)	400	800	1,866	3,200	6,400	≥12,800
Overclocked Potential (MT/s)	~550	~1,066	~2,133	~4,000	~8,400	≥15,000–17,000
Typical Voltage	2.5 V	1.8 V	1.5 V (1.35 V LP)	1.2 V	1.1 V	<1.1 V
Burst Length	2, 4, 8	4, 8	8	8	16	16
Prefetch Buffer	2n	4n	8n	8n	16n	≥16n
Channels per DIMM	1	1	1	1	2	4
Sub-channel Width	64 bits	64 bits	64 bits	64 bits	32 bits	16 bits
DIMM Max Bandwidth	~3.2 GB/s	~6.4 GB/s	~14.9 GB/s	~25.6 GB/s	~51.2 GB/s	≥134 GB/s
CAS Latency (Cycles)	2–3	3–6	5–11	10–19	20–40	TBD (Expected ≥40)
Refresh Modes	Auto/Manual	Auto/Manual	Auto/Manual	Auto/Manual	Same as DDR4	Adaptive Refresh
Power Saving Features	Basic	Partial Array SR	Partial Array SR	DBI, CA Parity	DVFS, On-die ECC	DVFS, Sideband Telemetry
Signal Integrity Enhancements	Basic termination	ODT	Fly-by topology	DFE, ODT	DFE, ODT	DFE, CTB, Sideband
Error Correction	No (Optional ECC)	No (Optional ECC)	Optional ECC	Optional ECC	On-die ECC	Enhanced On-die ECC
Typical Power Consumption	High	Moderate	Moderate	Lower	Lower	Significantly Lower
Target Markets (Initial)	Desktop	Desktop, Server	Desktop, Server	Server, Desktop	Server, Desktop	HPC, AI, Cloud, Enterprise

Application Domains

DDR6’s performance and efficiency improvements make it especially well-suited for:

AI Training and Inference: Large parallel datasets and low-latency retrieval.

Cloud and Hyperscale Data Centers: High throughput to support virtualized workloads.

High-Performance Gaming: Real-time computation and rendering.

Enterprise Analytics: Scalable data pipelines.

Edge and Mobile Computing: Power-sensitive environments.

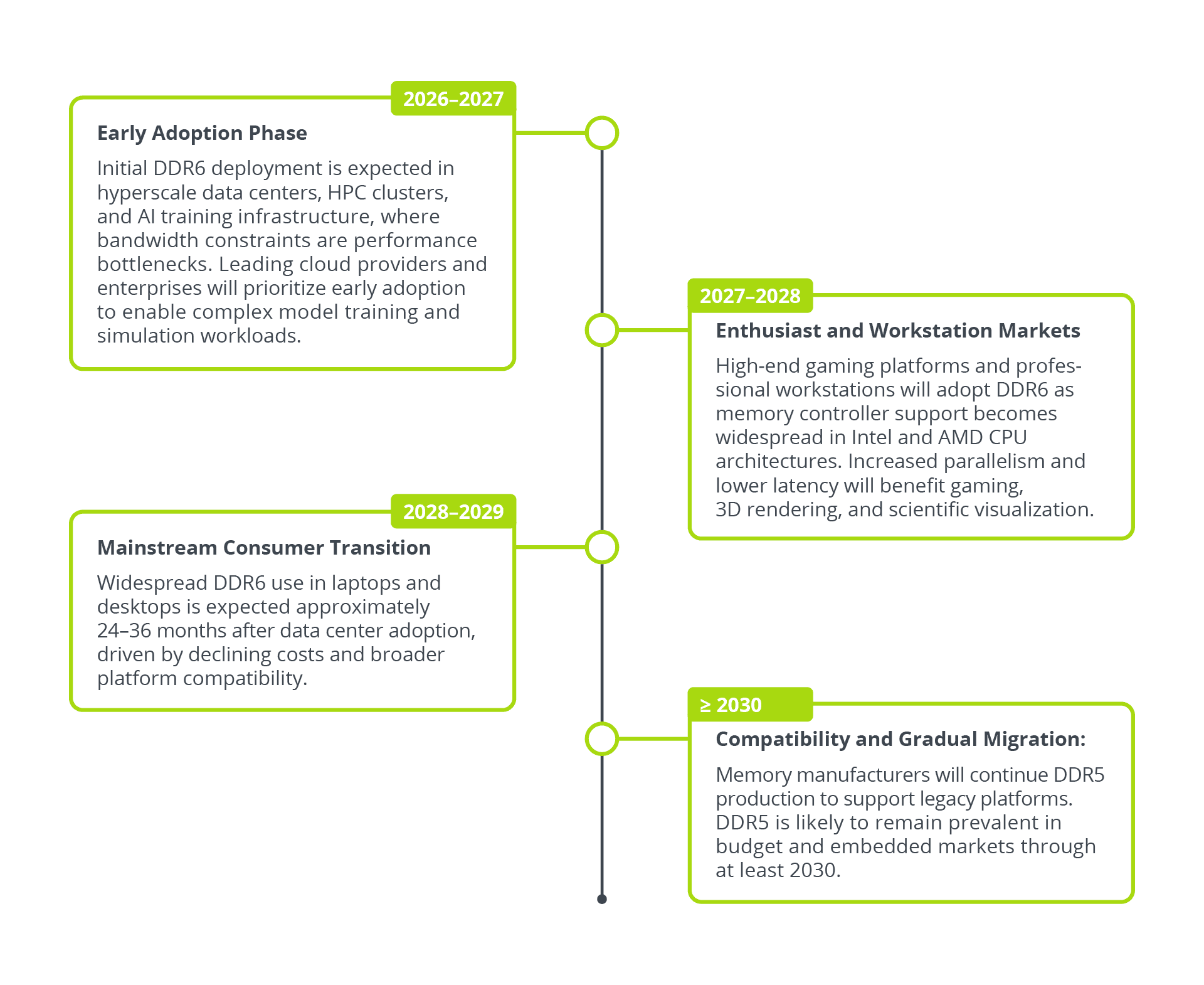

Application and Adoption Trends

The transition to DDR6 is anticipated to follow the pattern observed in prior DRAM migrations, characterized by an initial phase of limited deployment in specialized domains before mainstream adoption.

Acceleration Factors:

AI and Data Analytics Workloads: Expanding model complexity drives earlier adoption.

Advanced Gaming Requirements: Demand for low-latency memory.

Edge Computing Proliferation: Memory bandwidth constraints in decentralized inference scenarios.

Overall, DDR6 adoption is expected to proceed more rapidly than DDR5 but may still require 5–6 years to reach majority penetration.

Conclusion

DDR6 represents the next transformative advance in DRAM technology, combining unprecedented bandwidth, improved power efficiency, and architectural flexibility. While the specification is pending JEDEC ratification, consensus indicates DDR6 will soon become foundational to high-performance computing ecosystems across AI, cloud, gaming, and enterprise workloads.

The coming years will define the trajectory of memory innovation—and DDR6 is positioned to lead that evolution.
